Kawasaki 1100cc (ZXi & STX) Gaskets


DESCRIPTION
OEM PART # OUR PART #

HEAD STAINLESS STEEL .010 11004-3715 7600
HEAD ULTIMATE GREEN .047 ULTIMATE ** 7605
BASE 11060-3760 7615
REED (3 REQ'D) 11060-3717 7050
REED CARB (3 REQ'D) 11060-3757 7630
EXHAUST (3 REQ'D) 11060-3767 7650
CARB (1 REQ'D) 11060-3775 7652
CARB (1 REQ'D) 11060-3776 7655
HEAD PIPE 11060-3768 7660
MUFFLER 11060-3769 7665

SEALS

CRANK SEAL 92049-3713 5920
CRANK SEAL 92049-3715 7484
CRANK SEAL 92049-3716 7486
CRANK SEAL KIT ALL 7488K

KITS

1100 COMPLETE KIT ALL 7680K
1100 COMPLETE KIT WITH SEALS ALL 7685K

* DENOTES ITEM IS INCLUDED IN TOP KIT
** NOT ORIGINAL EQUIPMENT


PART No. 7600
OEM No. 11004-3715
HEAD STAINLESS STEEL .010
PART No. 7605
OEM No. ULTIMATE **
HEAD ULTIMATE GREEN .047
PART No. 7615
OEM No. 11060-3760
BASE
PART No. 7050
OEM No. 11060-3717
REED (3 REQ'D)
PART No. 7630
OEM No. 11060-3757
REED CARB (3 REQ'D)


PART No. 7650
OEM No. 11060-3767
EXHAUST (3 REQ'D)
PART No. 7652
OEM No. 11060-3775
CARB (1 REQ'D)
PART No. 7655
OEM No. 11060-3776
CARB (1 REQ'D)
PART No. 7660
OEM No. 11060-3768
HEAD PIPE
PART No. 7665
OEM No. 11060-3769
MUFFLER


PART No. 5920
OEM No. 92049-3713
CRANK SEAL
PART No. 7484
OEM No. 92049-3715
CRANK SEAL
PART No. 7486
OEM No. 92049-3716
CRANK SEAL
PART No. 7488K
OEM No. ALL
CRANK SEAL KIT


PART No. 7680K
OEM No. ALL
1100 COMPLETE KIT
PART No. 7685K
OEM No. ALL

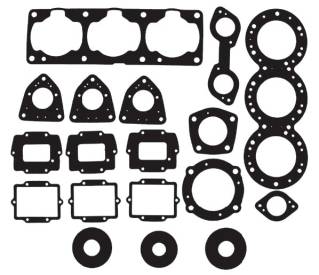

1100 COMPLETE KIT WITH SEALS

When enquiring about pricing or ordering please quote Part Number & the OEM (If available)

ENQUIRE

If you prefer you can email us at
sales@sbtaustralia.com.au
or phone on (07) 5537 9955
